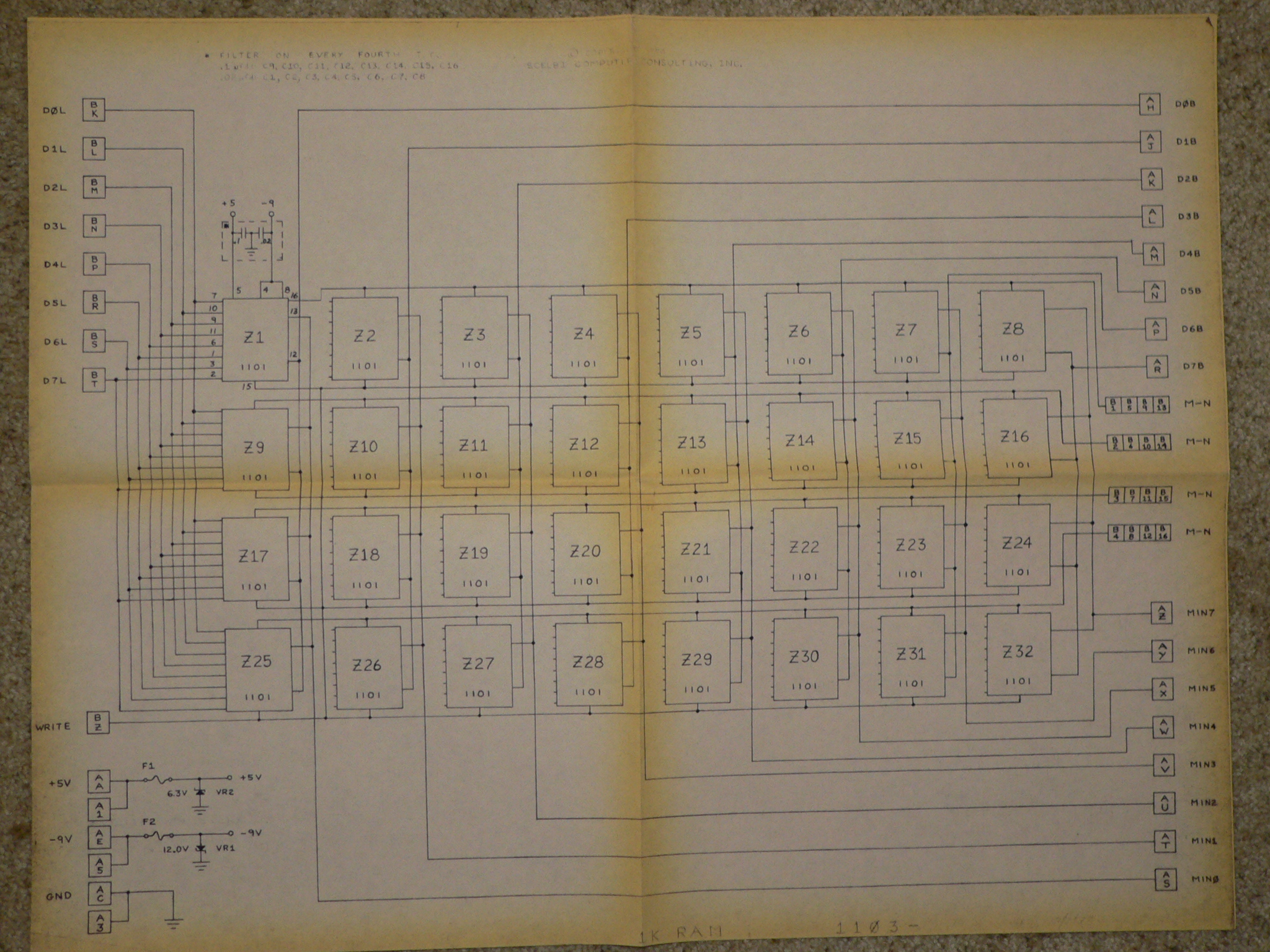

SCELBI - 8H Schematics - circa 1974

Number of images: 22

thumbs/P1080001.JPG.jpg thumbs/P1080002.JPG.jpg thumbs/P1080003.JPG.jpg
thumbs/P1080004.JPG.jpg thumbs/P1080005.JPG.jpg thumbs/P1080006.JPG.jpg
thumbs/P1080007.JPG.jpg thumbs/P1080008.JPG.jpg thumbs/P1080009.JPG.jpg
thumbs/P1080010.JPG.jpg thumbs/P1080011.JPG.jpg thumbs/P1080012.JPG.jpg
thumbs/P1080013.JPG.jpg thumbs/P1080014.JPG.jpg thumbs/P1080015.JPG.jpg
thumbs/P1080020.JPG.jpg thumbs/P1080021.JPG.jpg thumbs/P1080023.JPG.jpg
thumbs/P1080024.JPG.jpg thumbs/P1080025.JPG.jpg thumbs/P1080026.JPG.jpg
thumbs/P1080027.JPG.jpg

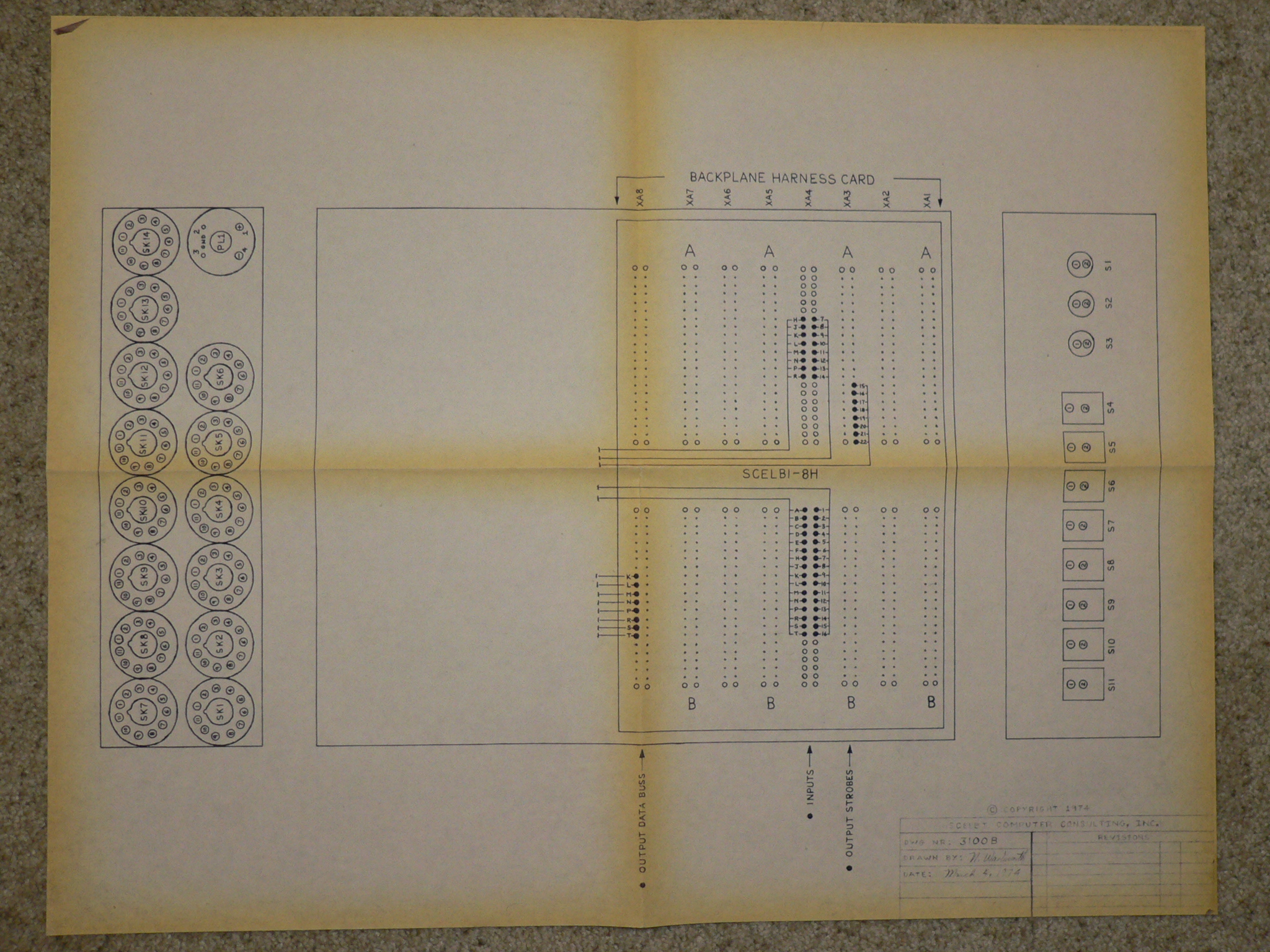

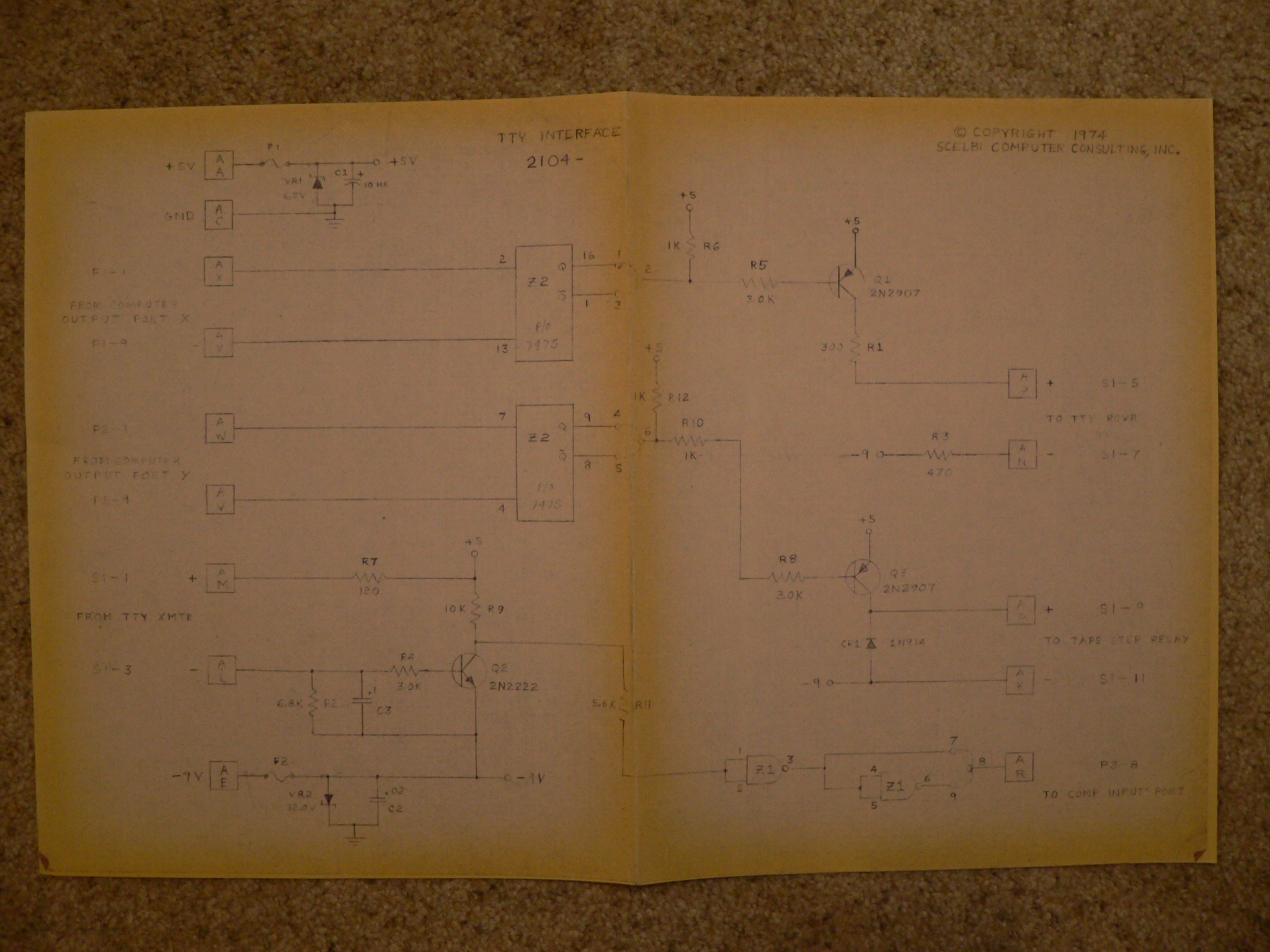

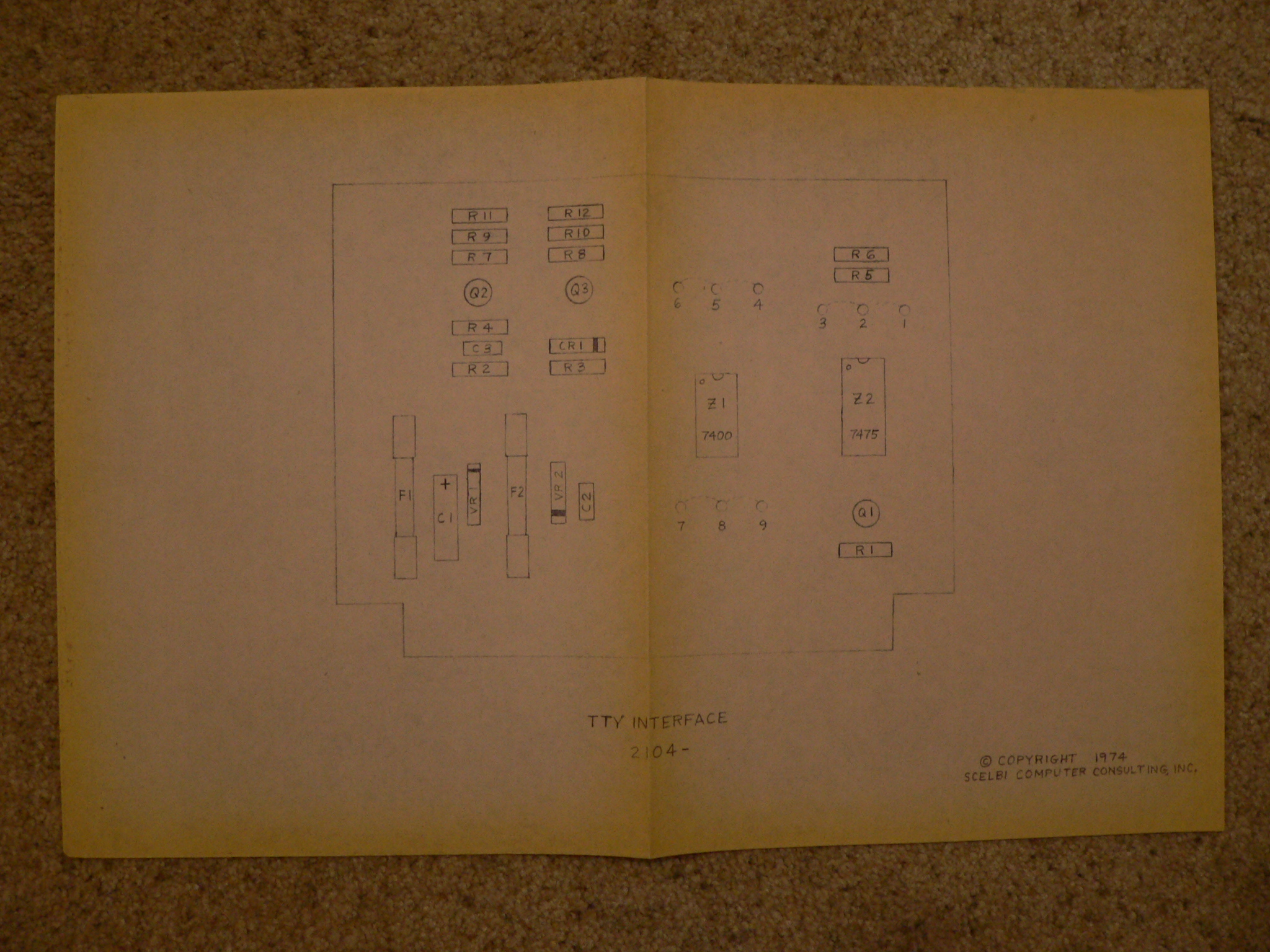

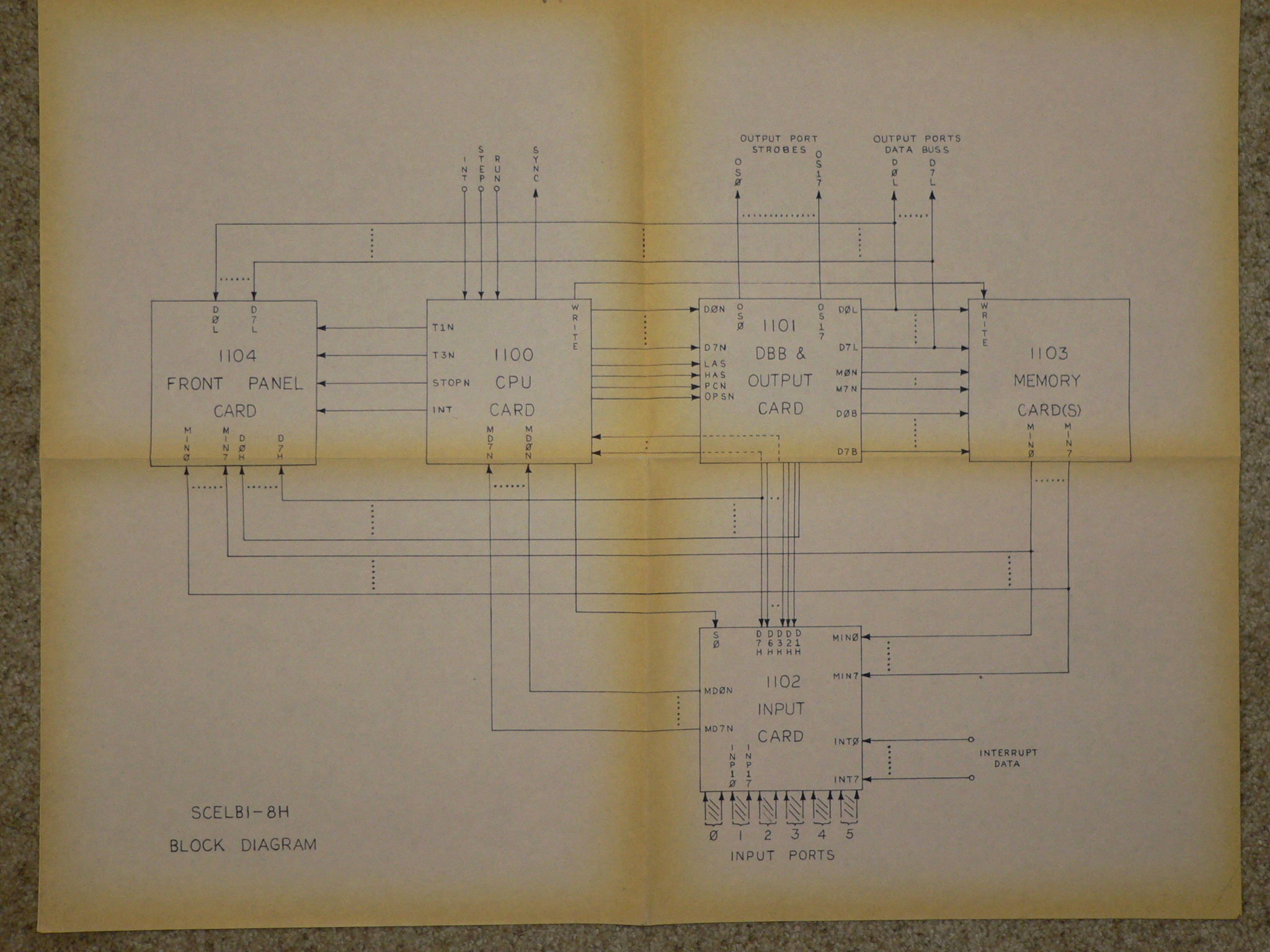

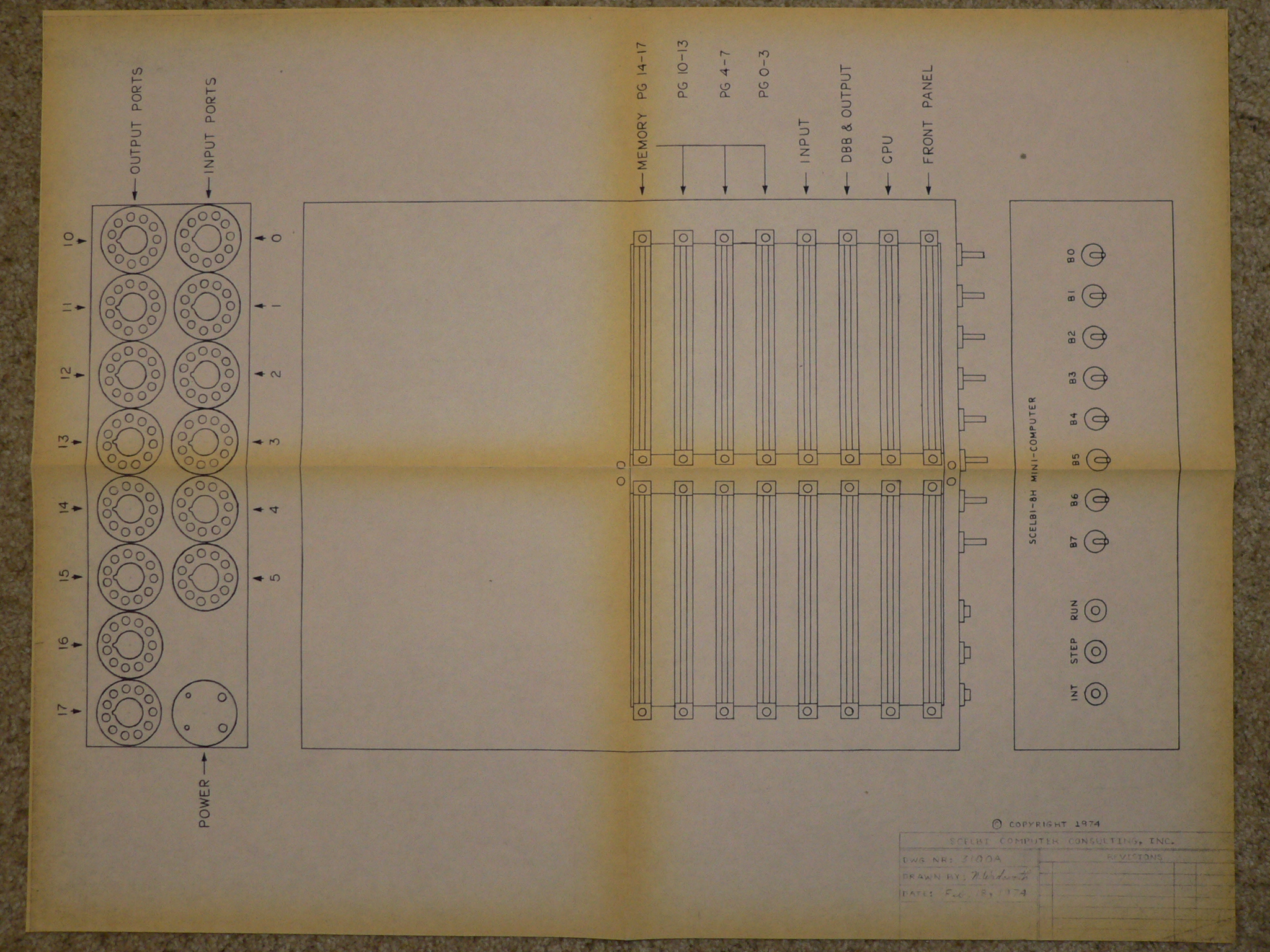

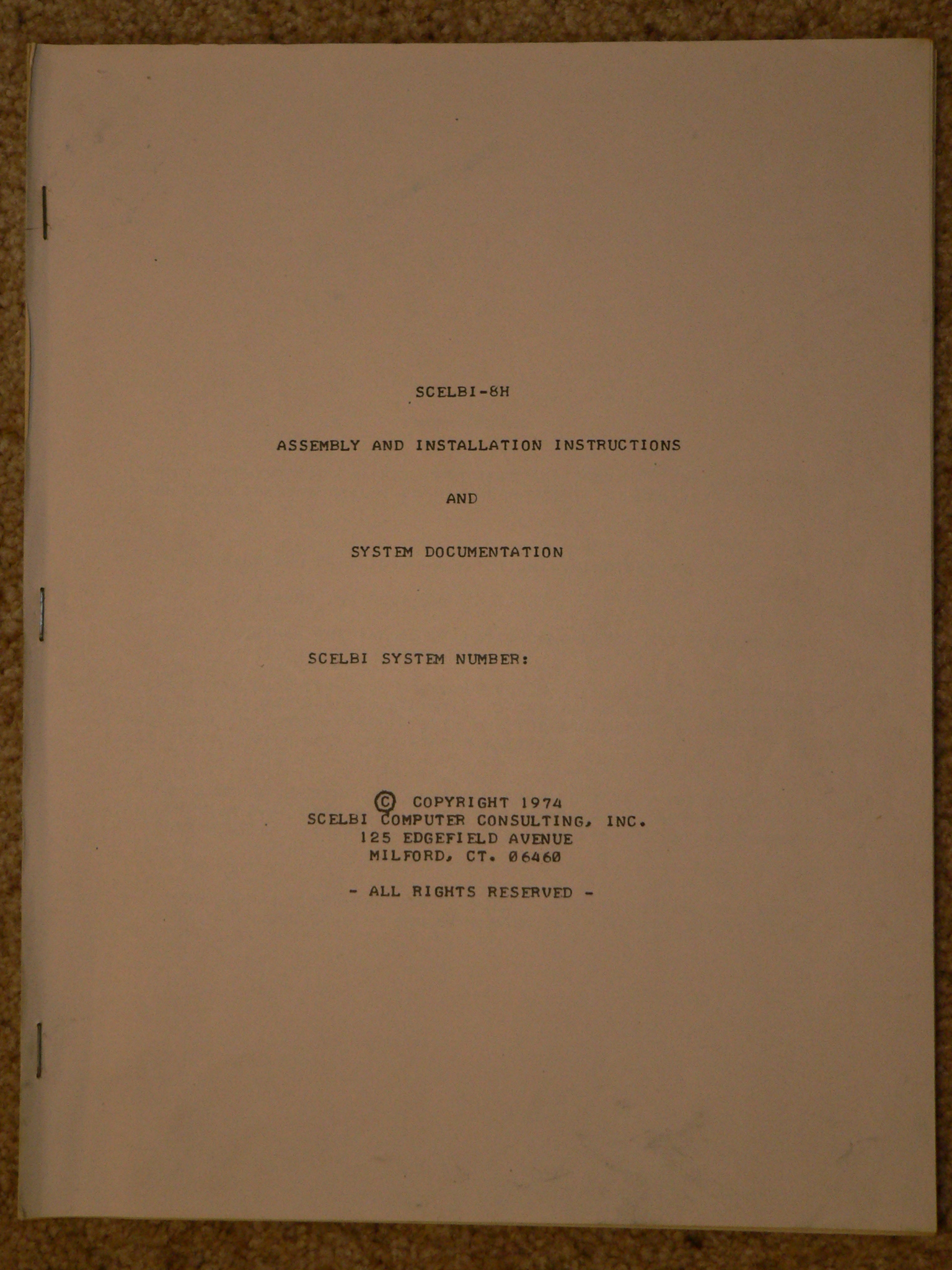

Assembly and Installation Instructions and System Documentation

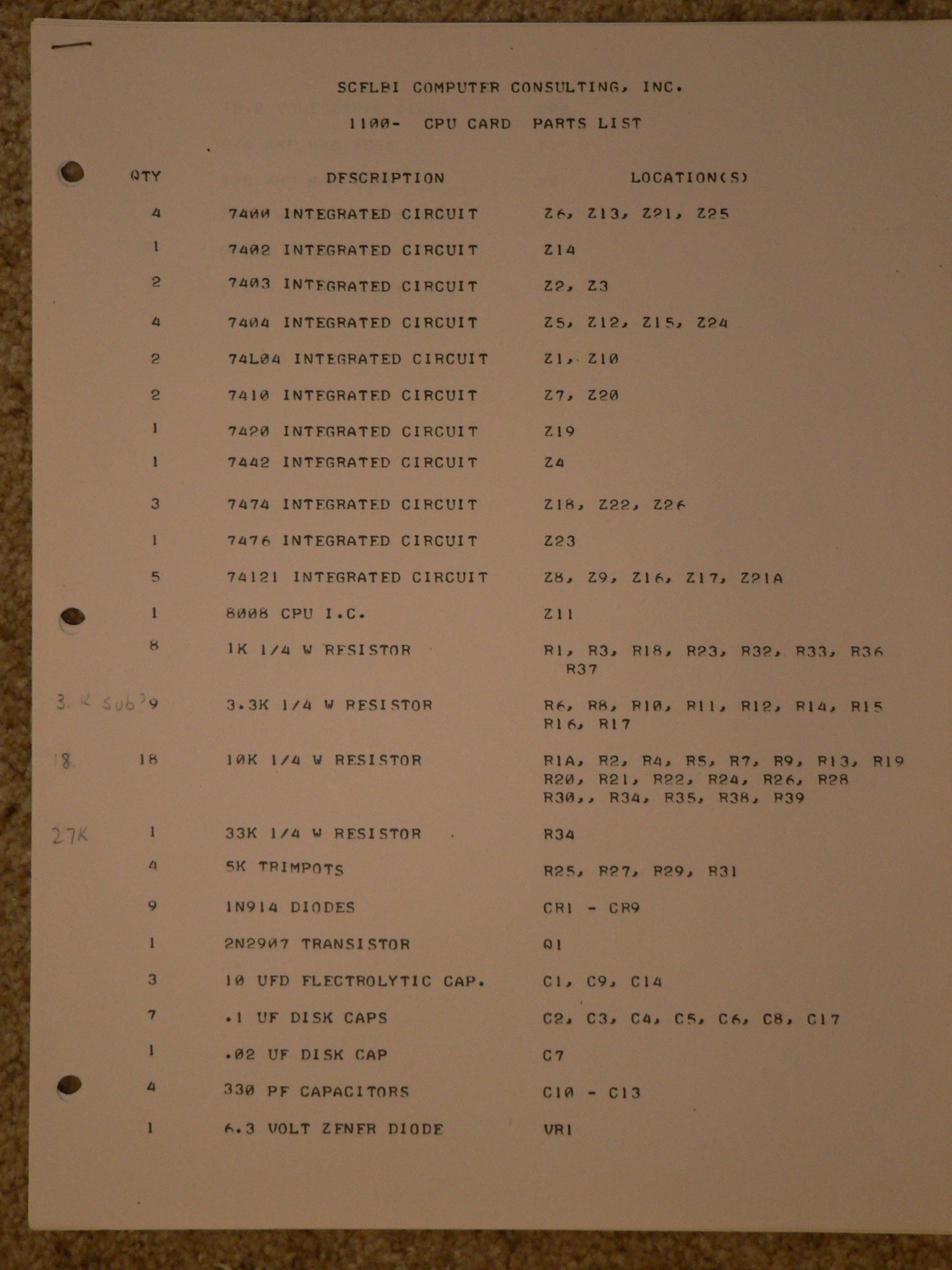

CPU Parts List

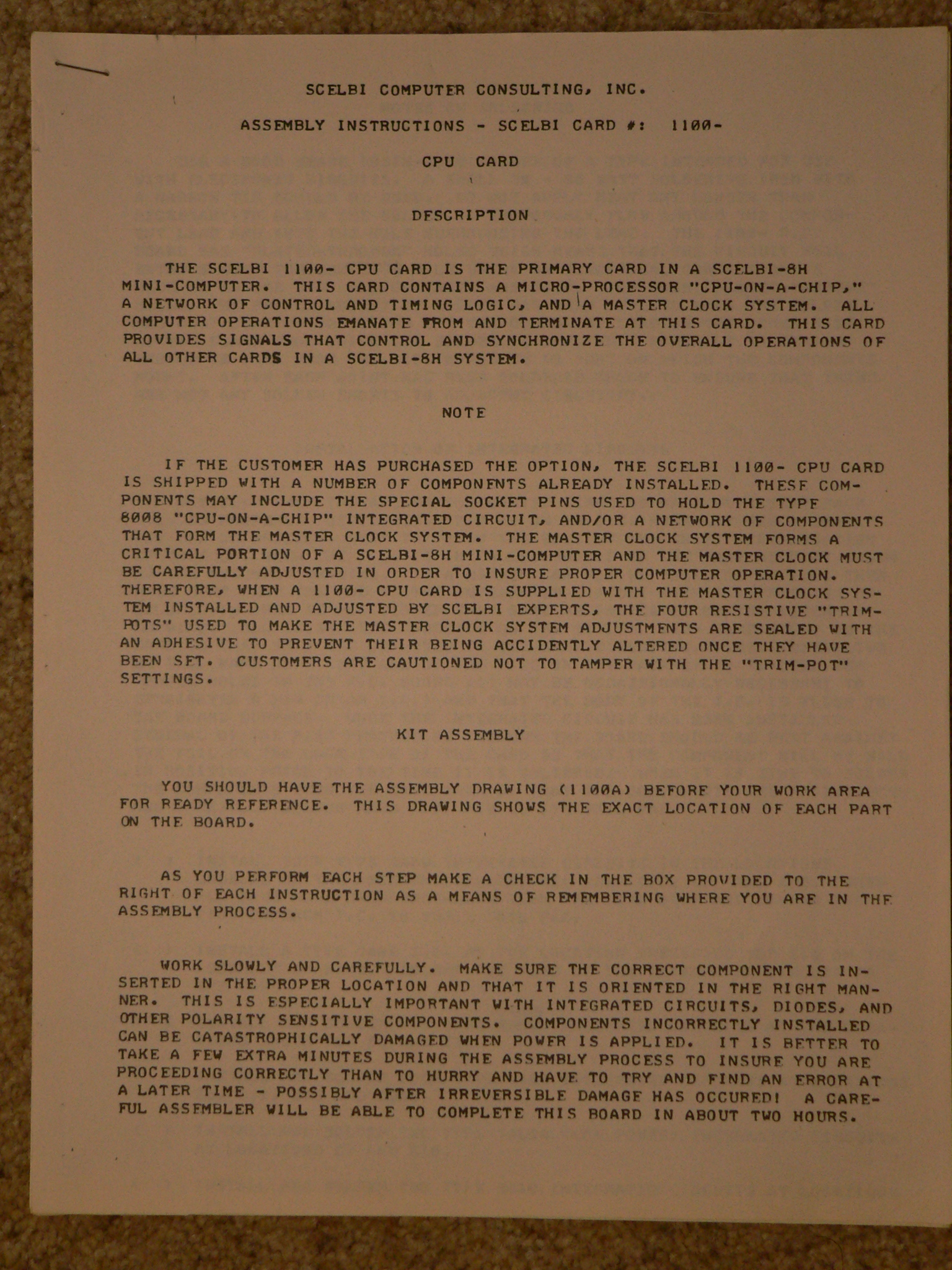

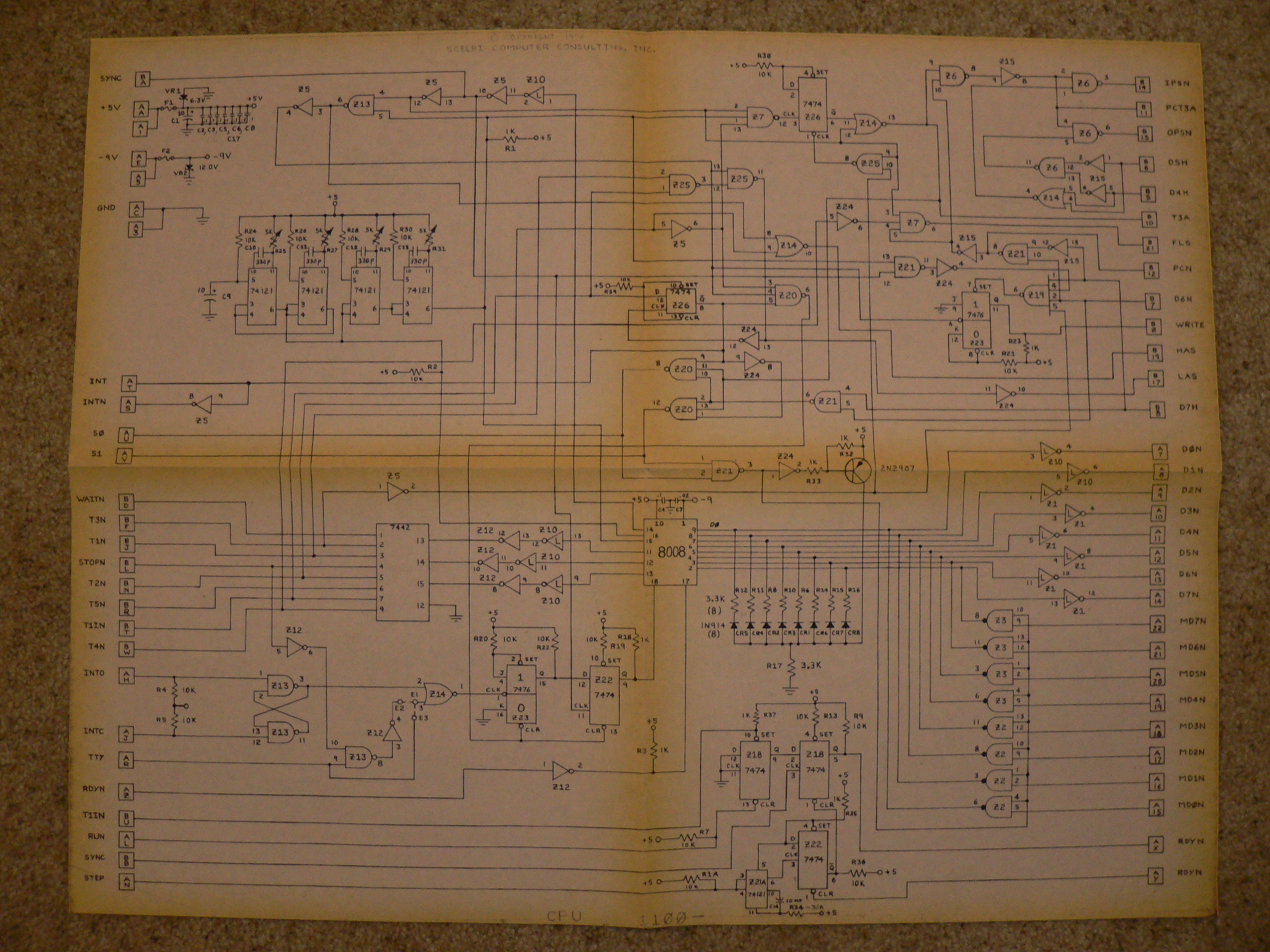

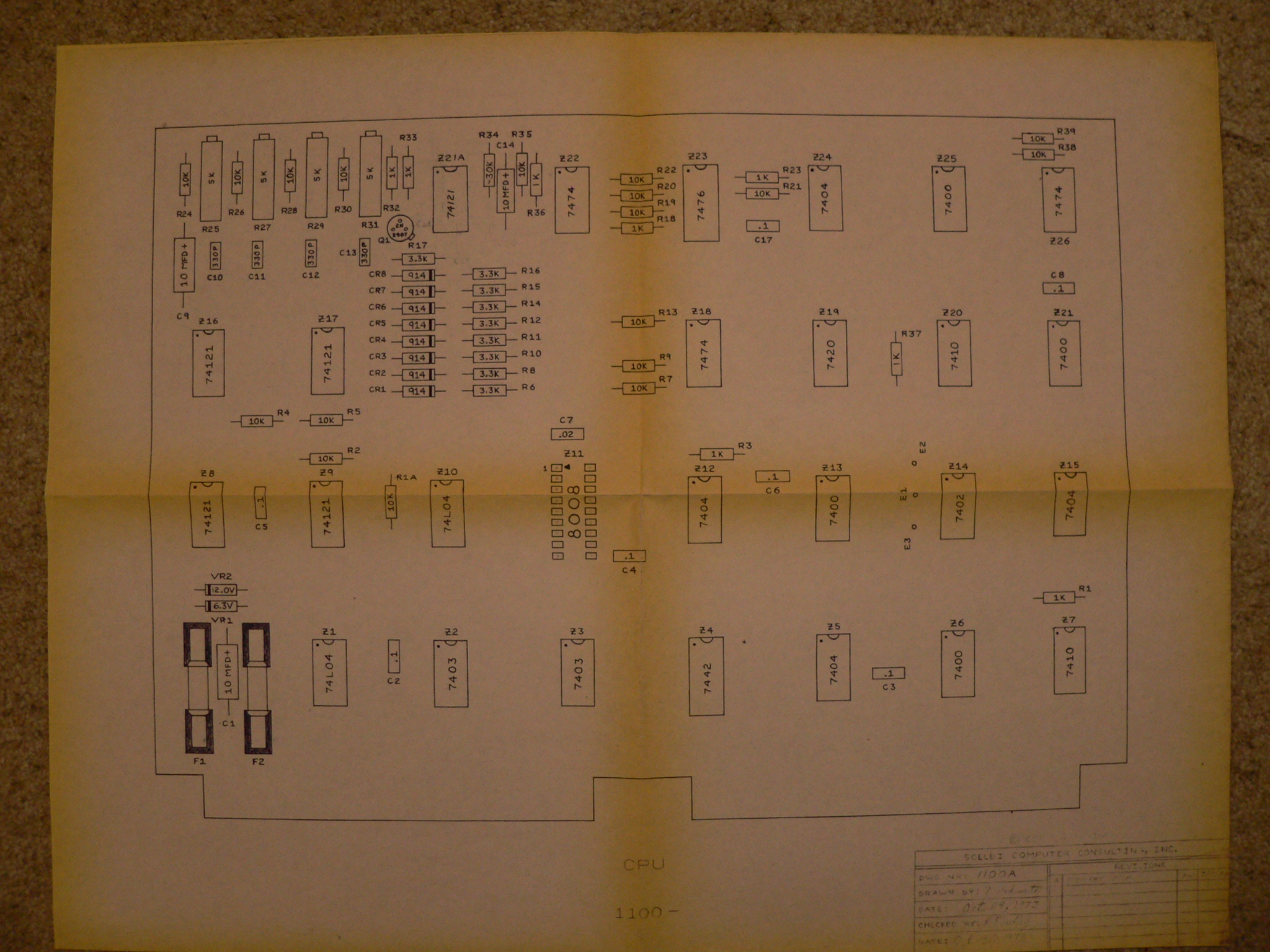

CPU (1100-) Assembly Instructions

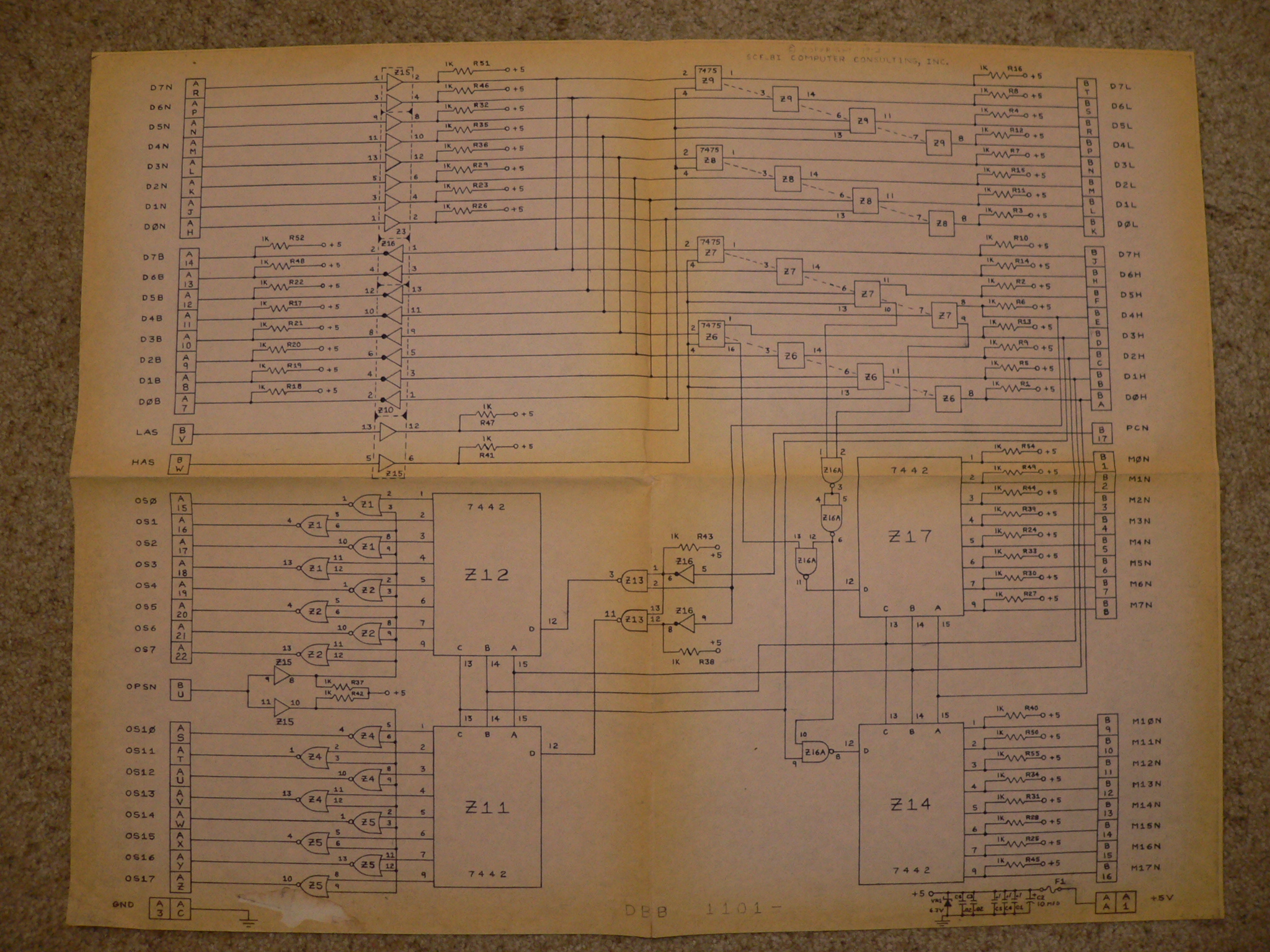

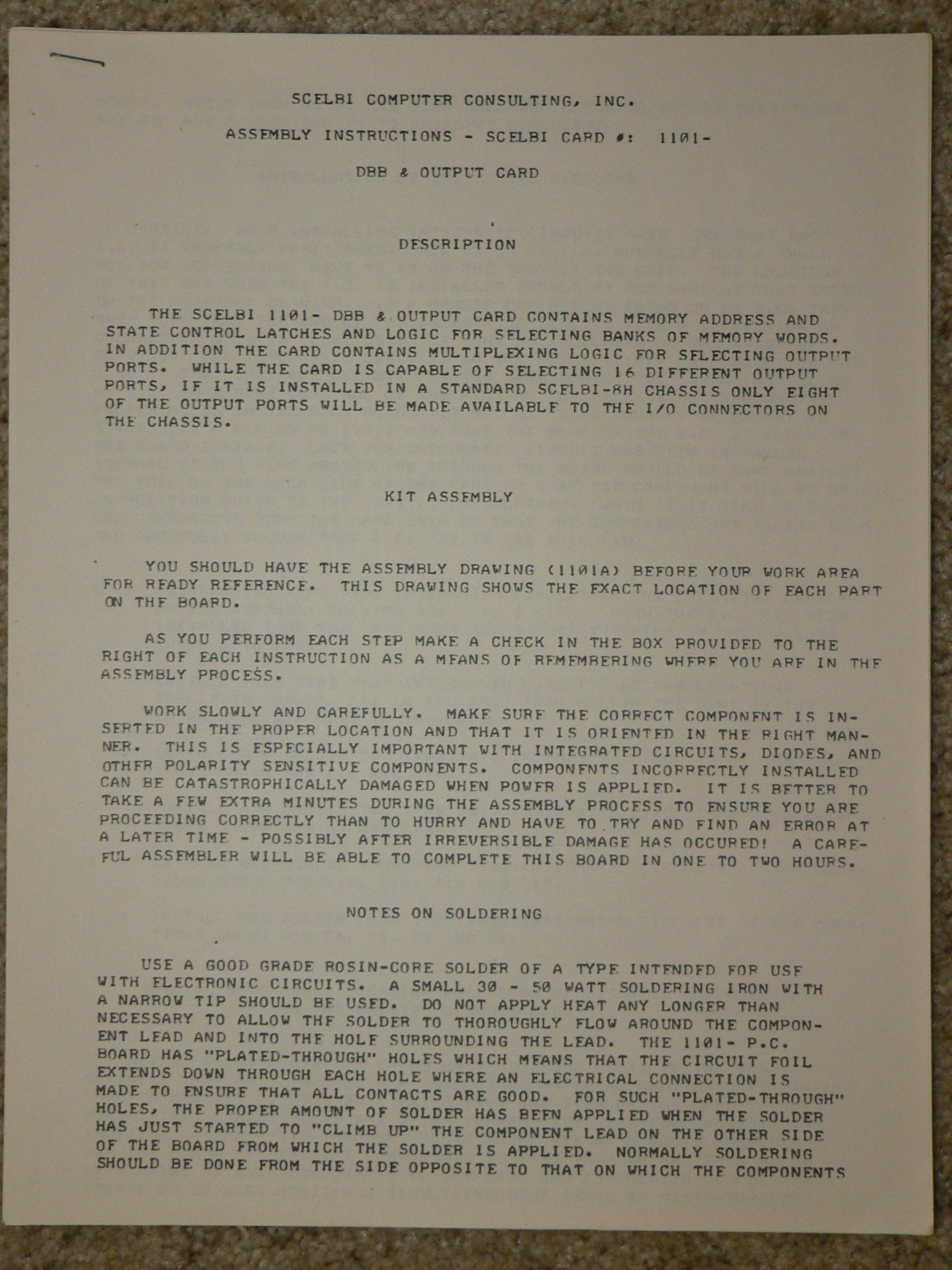

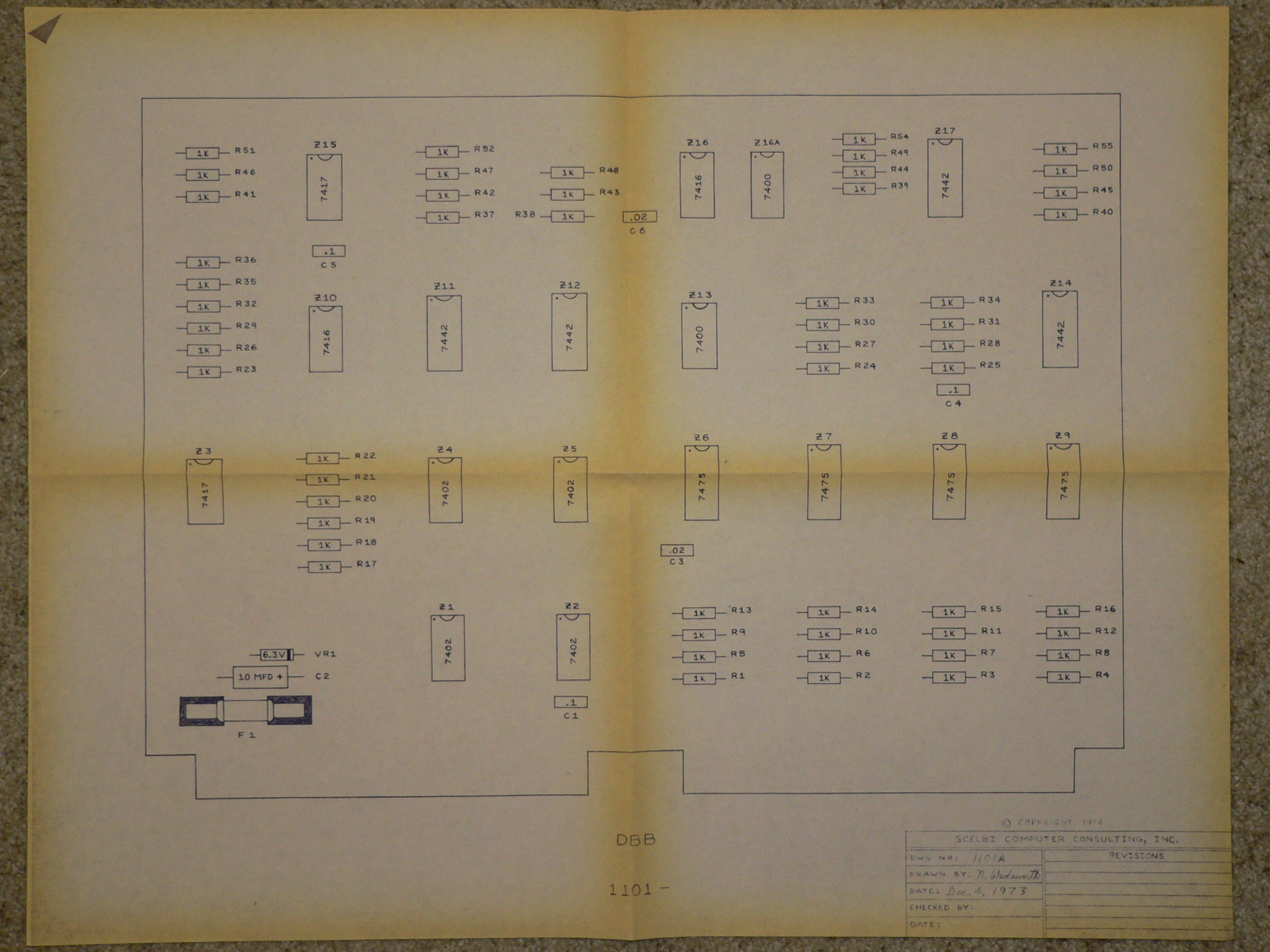

DBB and Output (1101-) Assembly Instructions

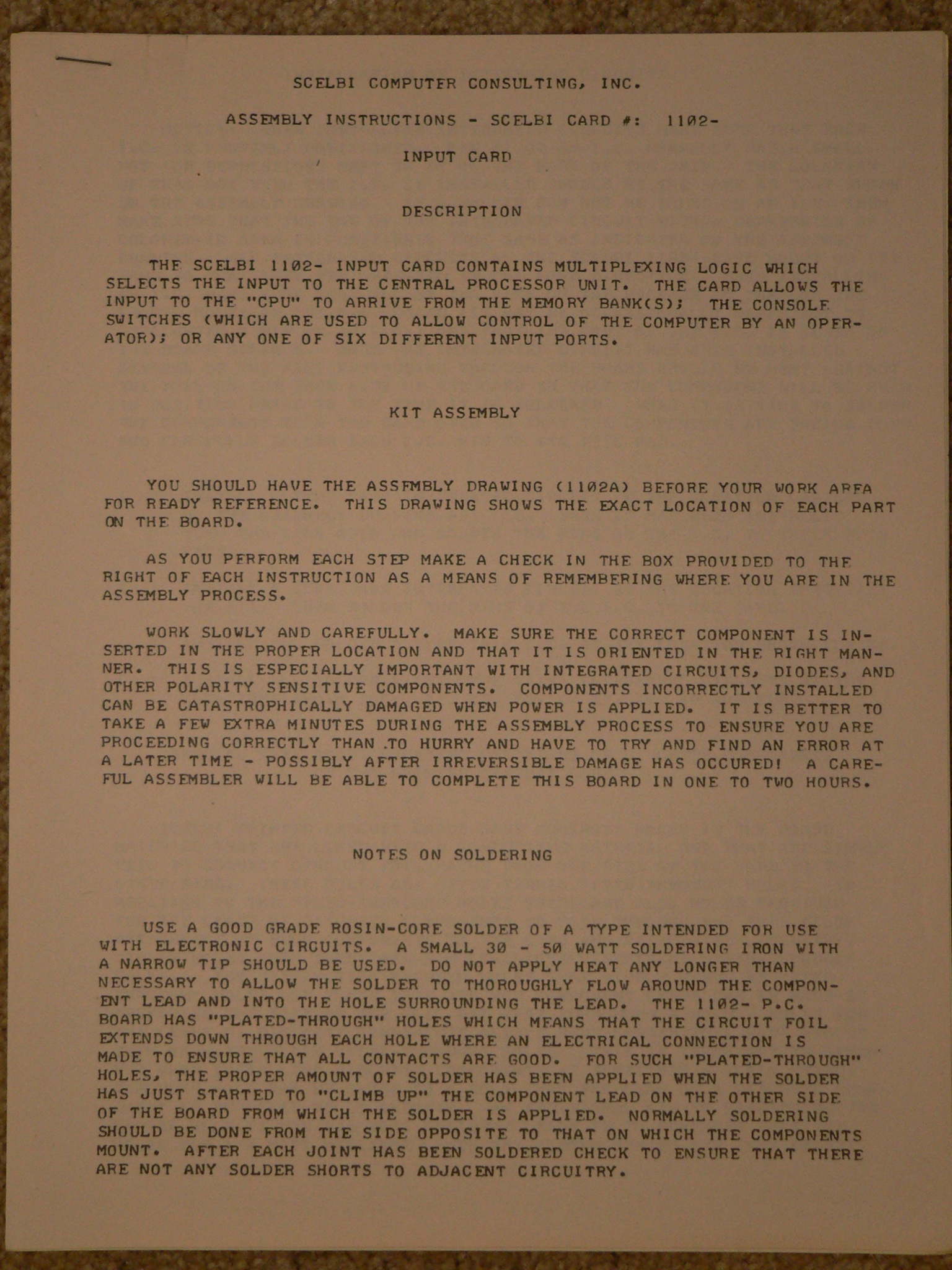

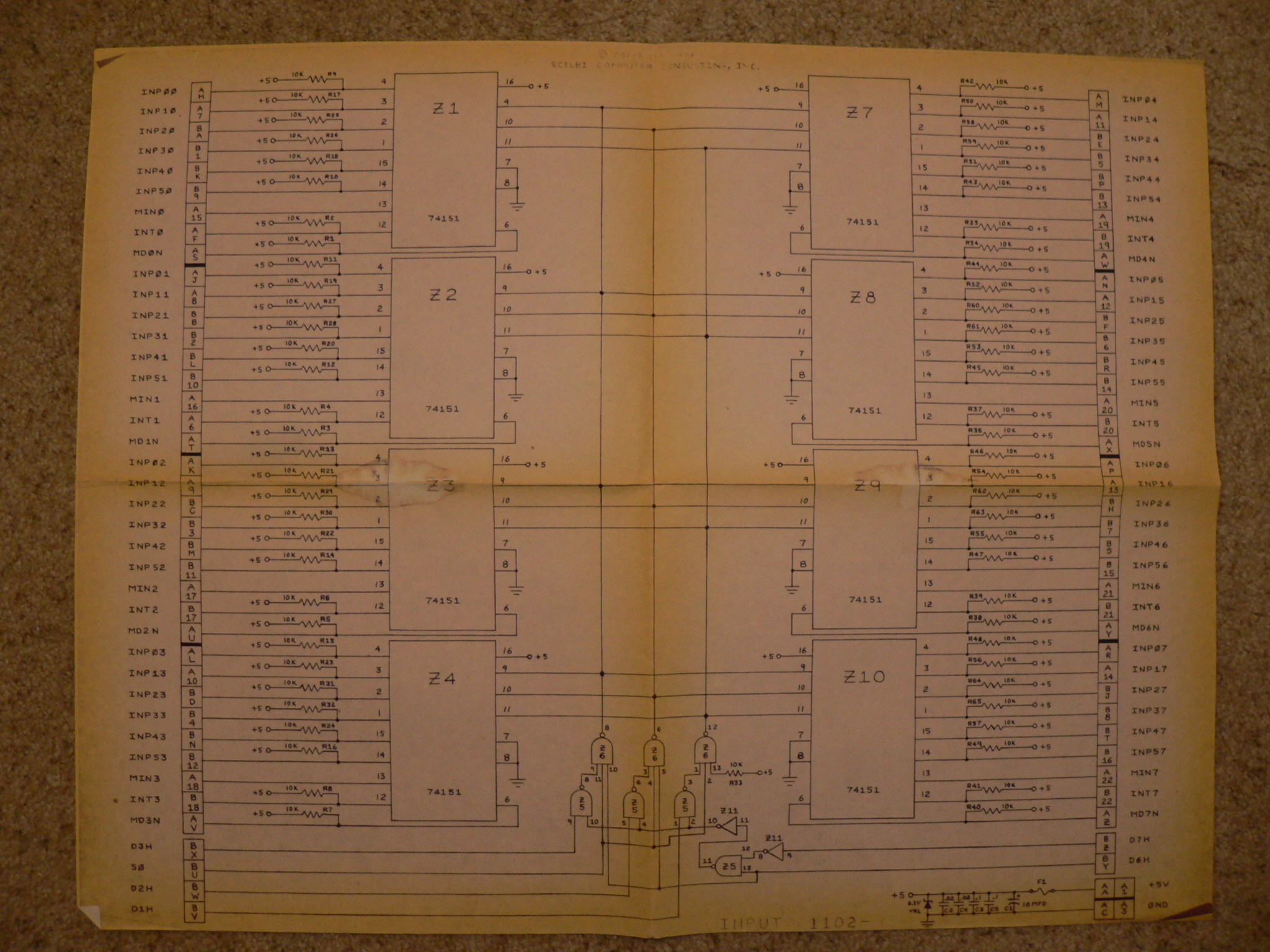

Input (1102-) Assembly Instructions

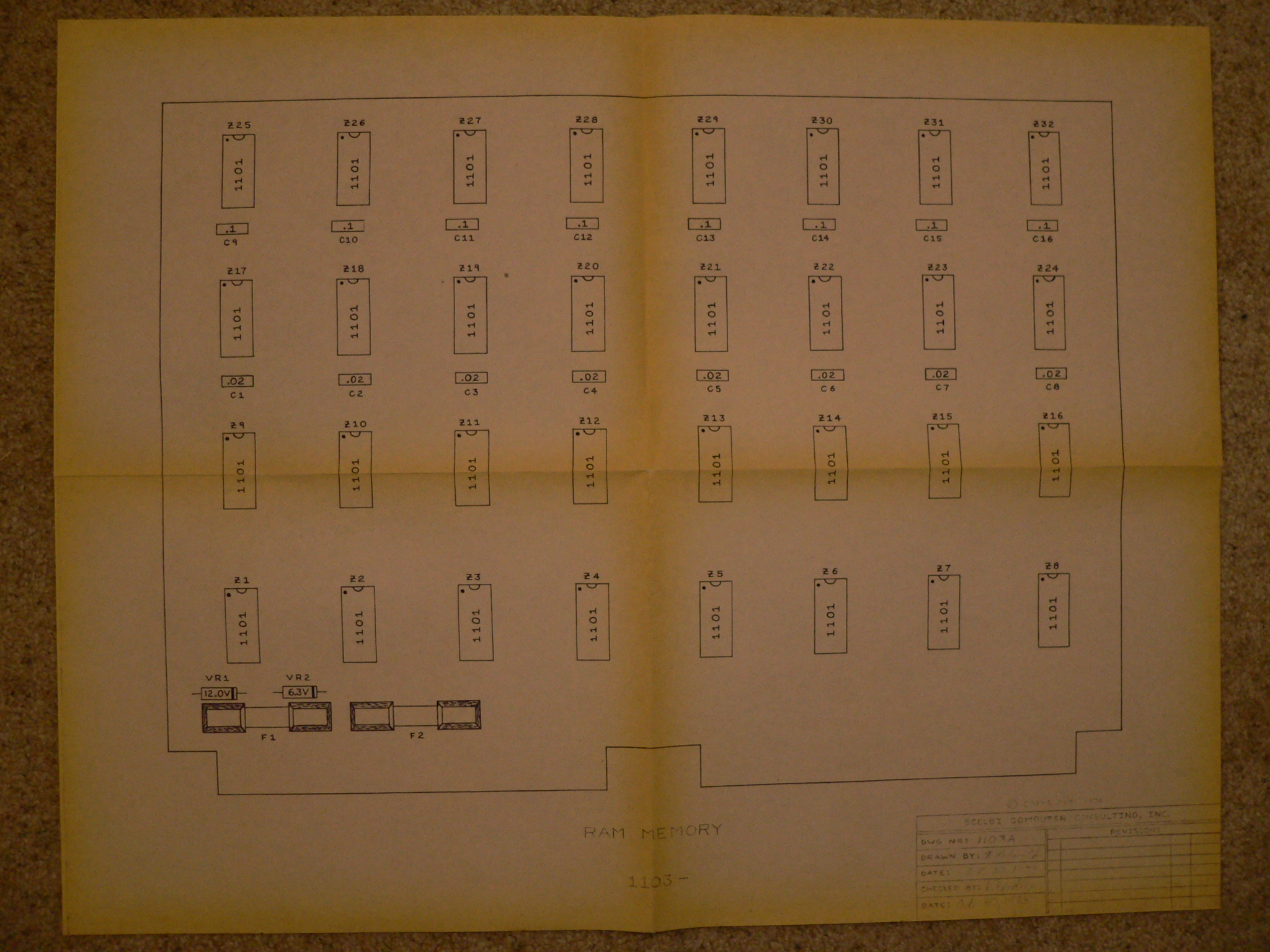

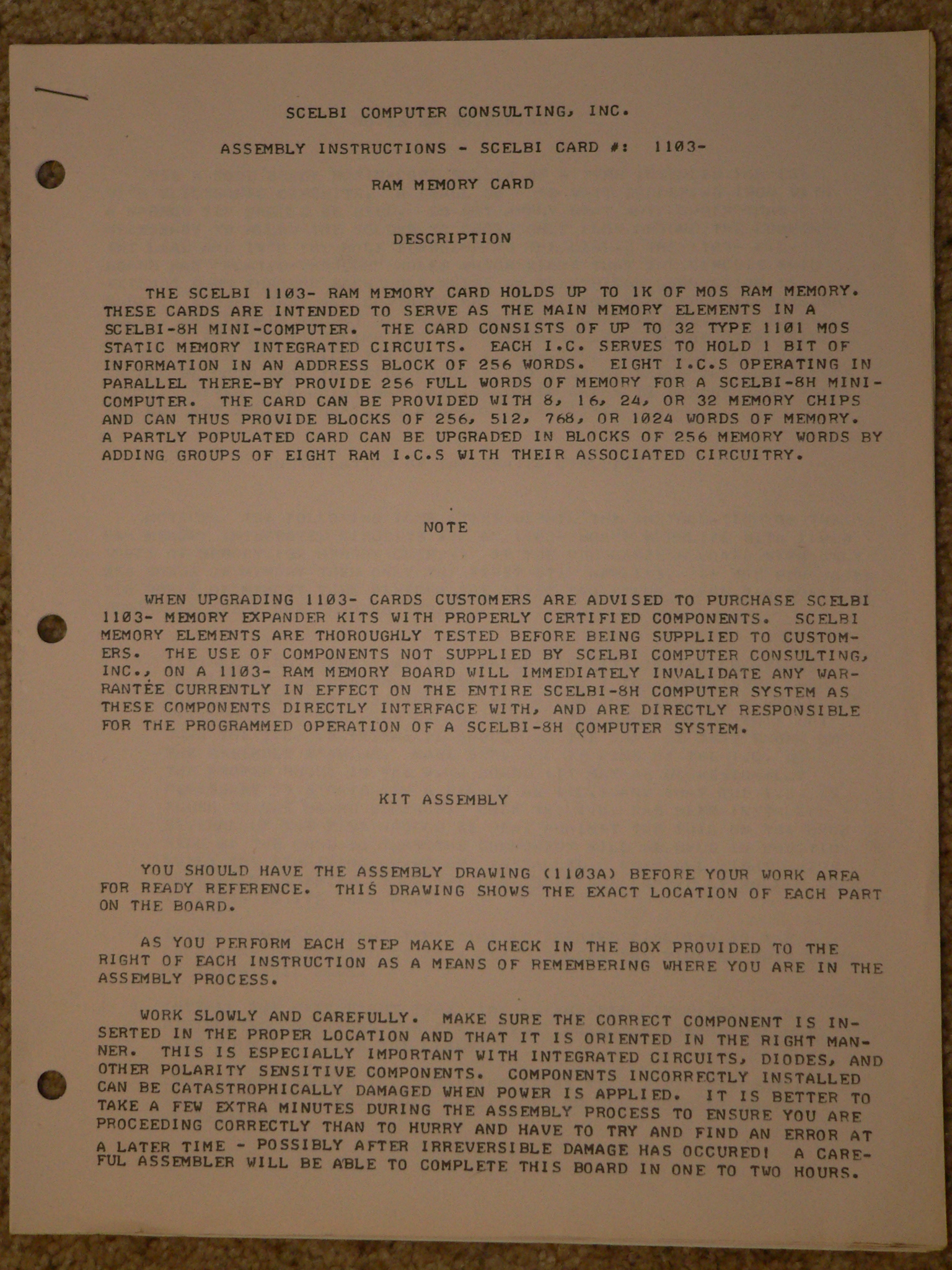

RAM (1103-) Assembly Instructions

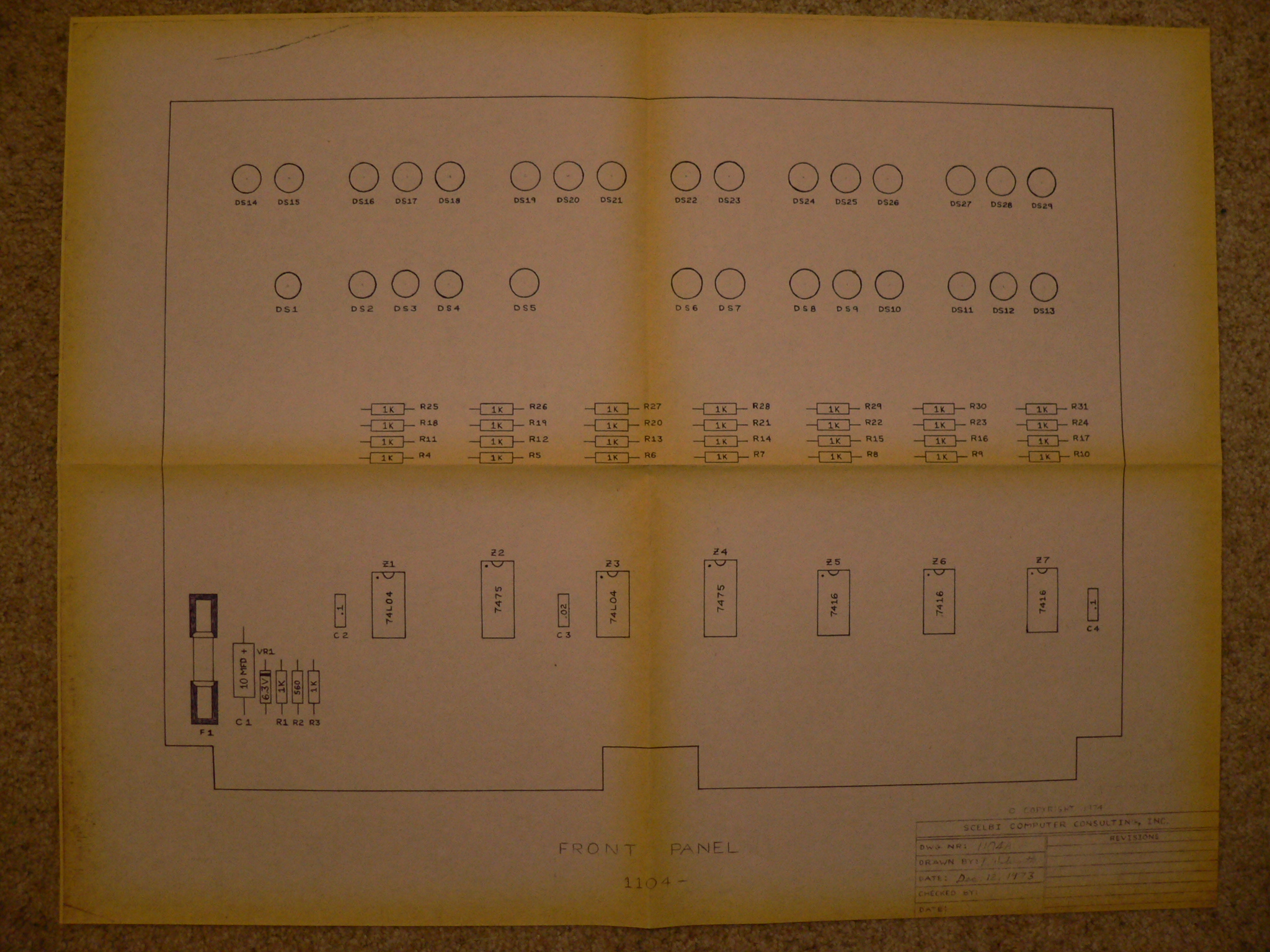

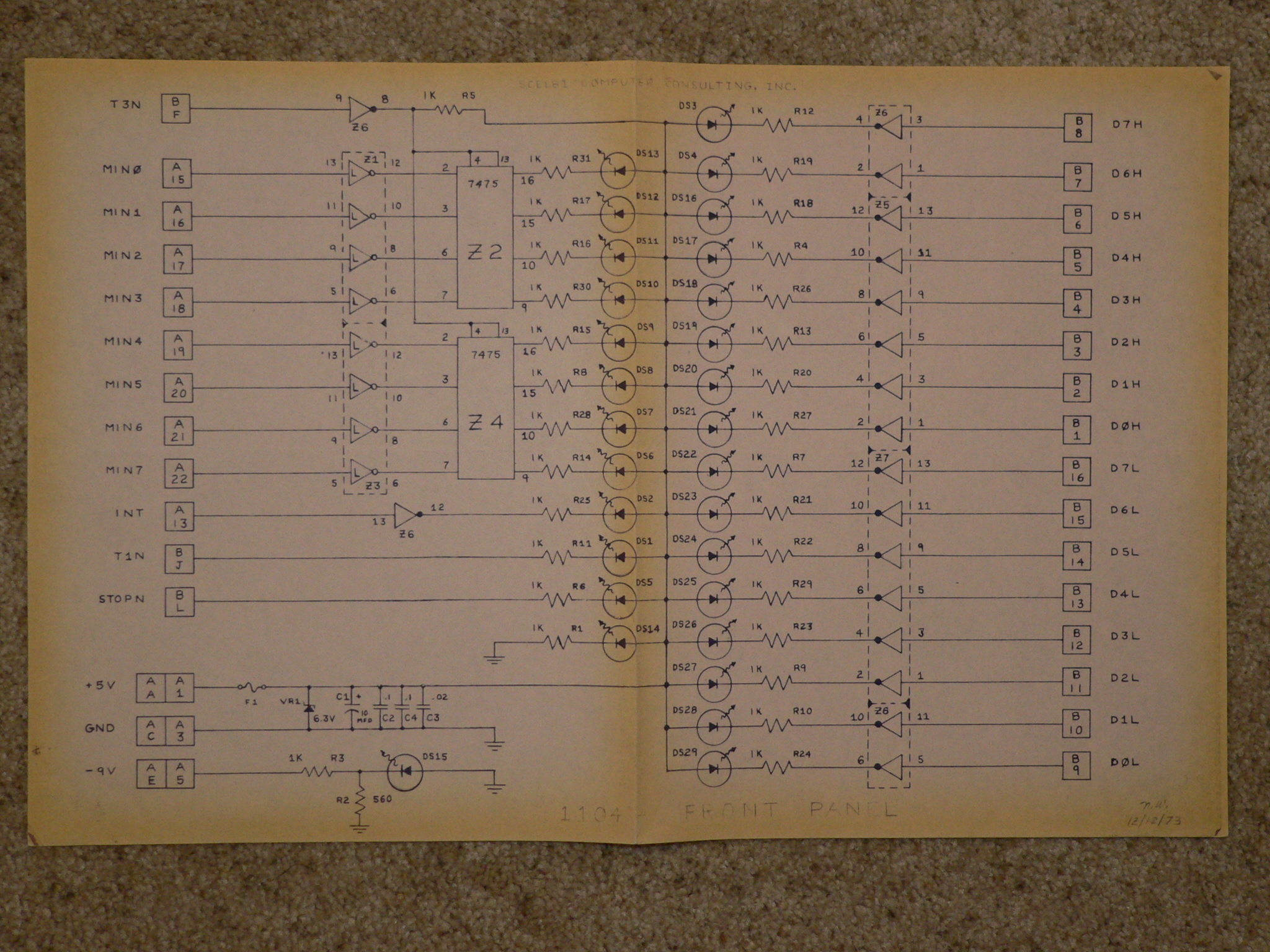

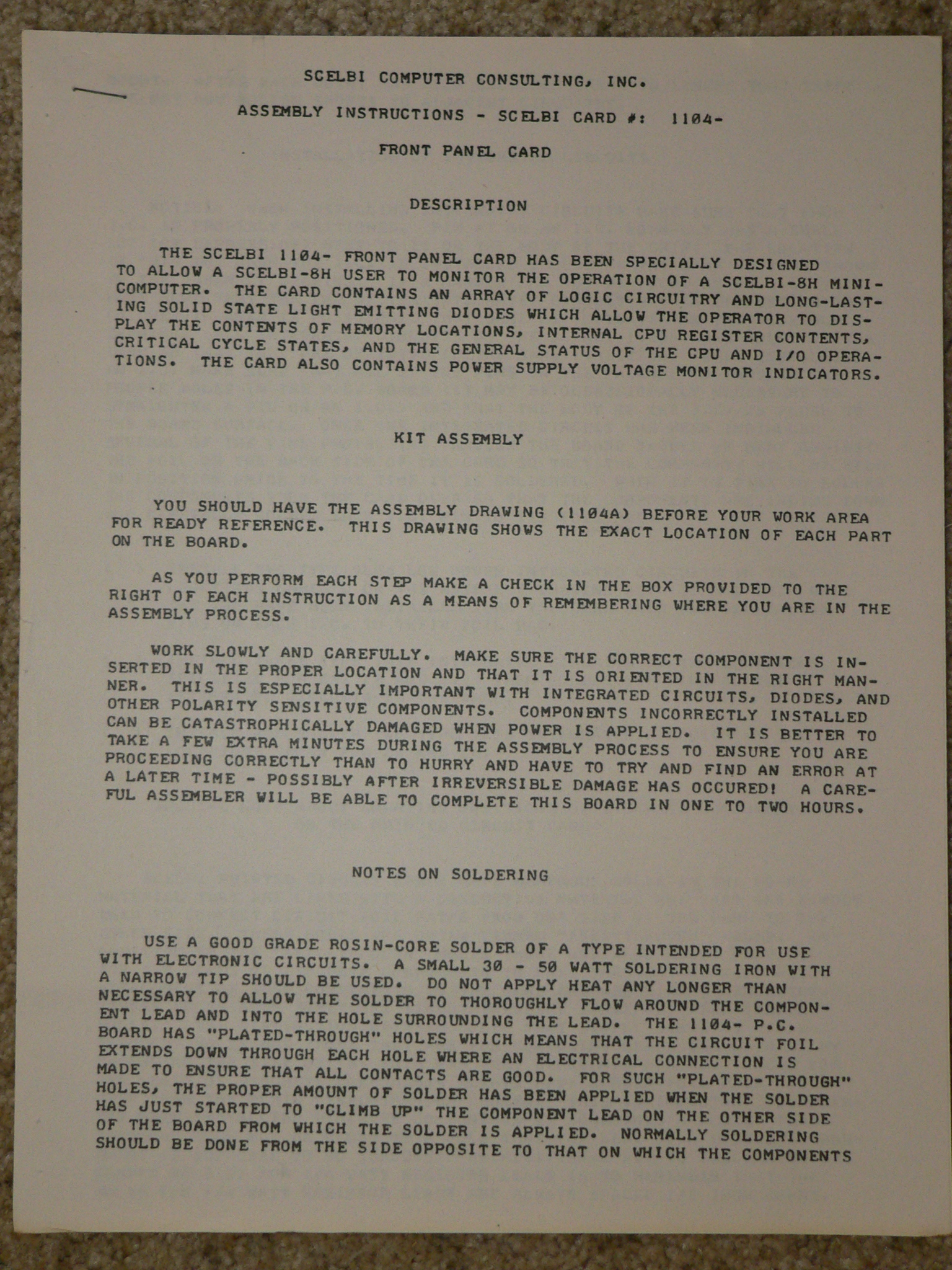

Front Panel (1104-) Assembly Instructions
Improving the Operation of the Step Switch
